A HDMI mod is already in the works for the N64, and allows you to get the best possible picture out of the vintage system. However, that's not the only modification which brings retro hardware bang up to date - there's a similar mod available for the older NES which performs the same trick.
Available via Game-Tech, the Hi-Def NES mod not only cleans up the picture dramatically, it comes with a wide range of additional benefits:
- Zero lag HDMI generated by your real NES - no frame buffer
- All signals, video and audio, are all digitally created therefore noise free. No analog conversion in the kit!
- Fits into top loading and front loading NES units, as well as AV Famicom's. More consoles are being tested, including the Sharp Titler.
- Automatic PAL/NTSC chipset detection.
- Three NTSC video modes: 480p, 720p, 1080p 60fps (NTSC CPU/PPU only)
- Three PAL video modes: 576p, 720p, 1080p 50fps (PAL CPU/PPU only)
- Four selectable palettes.
- Five scaling methods.
- Cropping on all four edges of the screen.
- Fully adjustable scanlines.
- Width adjustment to fine tune aspect ratio.
- The Hi-Def NES circuitry replaces the existing power with a more efficient design.
- Expansion audio is generated without the actual hardware in the cart, so if you have a rom with exp audio on your flash cart just turn on the option in the hi-def and it will work!
- Complete extended audio chip support: VRC6, VRC7, MMC5, N163, Sunsoft 5B and FDS.
- Realtime audio register viewer.
- Each audio channel is fully pannable.
- Countdown timer on the main menu that starts on powerup, for people timing speed runs.
- Reconfigurable hotkeys that can reset the system, overclock, underclock, and get into the menu.
- Software upgradable by using .nes file on flash cart or burned to EPROMs.
My Life In Gaming - the same chaps who did such amazing coverage of the N64 HDMI mod - have put together another video which shows this incredible mod in action. Have a look and let us know if this is the kind of thing you'd like installing on your classic console.
[source retrorgb.com]
Comments 73
How do you install it? Is it easy?
I'm appalled by how crappy NES games look on Wii U VC. So blurry and dark. N64 games looks way too dark as well. Only saving grace is M2's handling of GBA and NDS games. At least Nintendo did a decent job with SNES games.
VC NES and N64 games look better on the Wii!
@Kobeskillz At least with the N64 mod they only sell them to installers with some good soldering skills. I'm fairly good myself and they just let me know they were available this last weekend. The N64 mod is $120 each kit and requires that you buy at least three to install, so a modder would likely charge $150 or more to do that mod on your console. The NES mod may be easier with larger solder points, but you'll likely need to send your console off to someone or if your skilled enough buy three and install/sell them to friends or others. I'm guessing the price point will be about the same, so not very cheap.
that Wii-U image is a lie, wtf
@Kobeskillz They look better on the Wii, too bad it's still component video.
Nintendo seriously needs to fix the nes vc. 5 dollars for the worst quality imaginable? No thanks
Wow, I'm actually really disgusted how NES games look like on the Wii U, it's a hd system but yet the modded NES looks better then it?!?
@vonseux
A quick YT search of Wii U VC and the differences are a tad minor to the Wii U sample here.
https://www.youtube.com/watch?v=r6907EYjX7U
Still looks pretty bad though.
What's going on with that NES comparison?
Seriously, the Wii U VC does not look anywhere near that bad from my experience. I wouldn't even bother paying for the games if it did.
I smell shenanigans.
@Nico07 where can I find someone? Ebay?
As a Framemeister user, it does have one or two advantages over HDMI-NES.
1) the x4, x5 options tends to be more accurate
2) My console can still use CRT TVs ranging from Composite to RGB while the HDMI model is restricted to HDMI.
Still pretty cool to have if your only console is the NES/Famicom and you have no CRT TVs.
@Nico07 from the site: Kit will cost $120 and installation under $100.
Nintendo's in the bad habit of replicating poor display outputs for older systems, I wish they wouldn't do that.
It's a big reason why I don't like using their VC software, along with the lack of button remapping (at least on 3DS)
That Wii U VC comparison is actually fairy accurate although most TVs will brighten it up a bit. I really doesn't make sense when you consider that they have the original ROMS. I've been debating for a while on what I want to do with my NES setup. I just can't find room for my WEGA anymore so I'm stuck using an HDTV. I thought about AV modding my toploader but now I'm not sure.
Any suggestions?
@Kobeskillz They just started to ship the initial batch of the N64 product this last week. Once they get enough product available they said they planned to post a list of installers on their site http://retroactive.be/ This product is still in it's early stages, and the NES version will likely be a month or more before it's initial batch releases to installers.
I never noticed the TV issues with the Wii U VC since most of the time the NES stuff is being played on a gamepad. Still this is a cool mod, and I have been giving serious thought to a retro system lately.
Love the NES, but these mods are just a bit too rich for my blood.
I didn't realize the poor quality of the NES VC until I started playing Super Mario Maker. Man, those "8-bit" graphics are so bright, crisp, and beautiful.
I've never noticed NES games on Wii U to be that bad. I'm wondering if maybe the comparison picture exaggerates a little bit.
But 64 games on Wii U look terrible. Way too dark, with washed out colors. I thought it was my imagination but comparing Ocarina of Time on Wii U VC and Wii VC, Wii wins every time (except for the rumble feature). Wii U's VC is a huge disappointment.
I hope they do the same thing with the SNES. I'm also interested in that one.
That wiiu picture is a lie! Wash your screen -.-
I know for a fact, at least here in the UK though can't speak for anywhere else, that the Wii U NES virtual console games don't look like that. In fact I'm playing The Legend of Zelda right now!
Virtual console games on the WiiU and 3ds do look darker. Specially GBA games on the 3ds.
Wii U VC is too dark but this is an incredible exaggeration of how bad it is.
I don't get it?

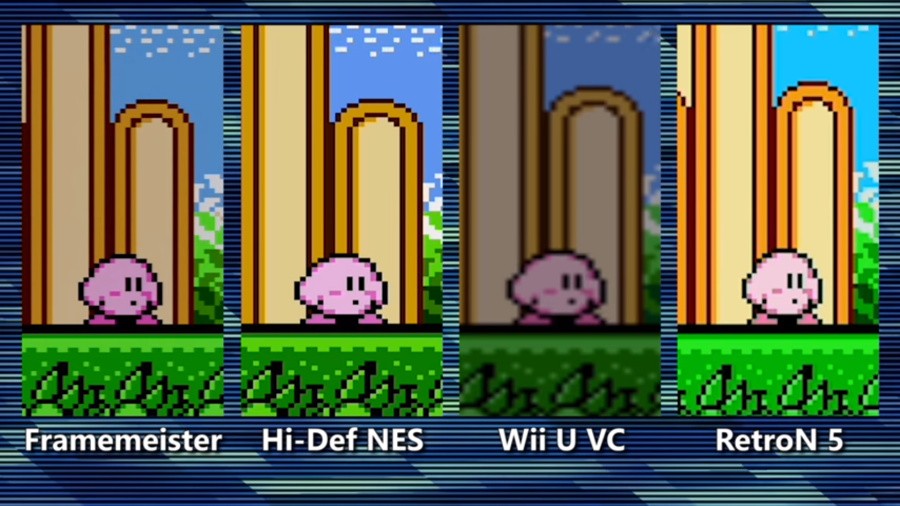

From those four pictures shown above, the Wii U VC version clearly looks the best. No hard edges, everything looks smoother and not so pixelated.
