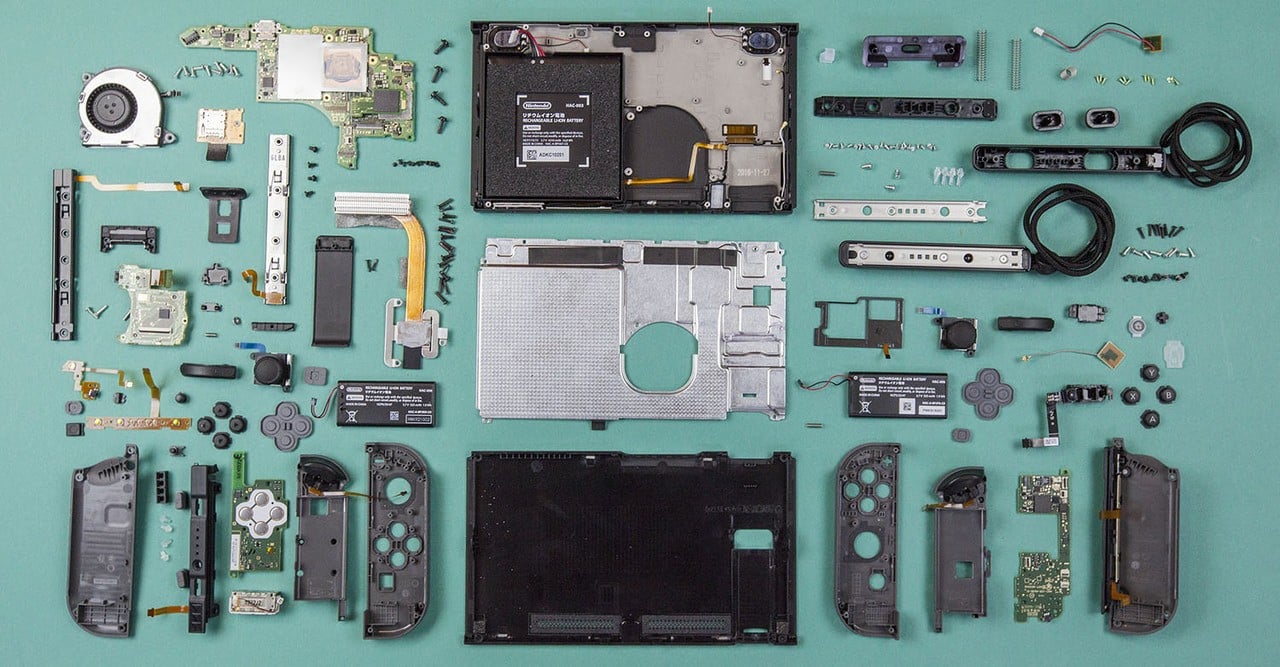

If you were lucky enough to pick up a shiny new Nintendo Switch last week then chances are the last thing you'll want to do is pull your new system apart, but thankfully we don't have to resort to extreme surgery to see what it looks like on the inside - we have the kind folks over at fictiv to do that for us.
Not only have they picked apart the console itself - finding an impressive amount of thermal control inside - they've also deconstructed the Joy-Con, Joy-Con grip and dock.
Be sure to head over to the site for the full teardown, plus plenty of analysis on what's found inside. If you'd rather see this process in motion, then check out iFixit's footage below.
[source fictiv.com, via ifixit.com]
